Why Is My Commercial Glasswasher Leaking Water?

A commercial glasswasher can leak for many different reasons.

The location of the water is often an important diagnostic clue.

Possible causes can include:

• Damaged or deteriorated seals

• Loose or damaged hoses

• Hose connections

• Drainage problems

• Drain pump or associated components

• Water inlet components

• Excessive water level

• Overflow problems

• Blocked wash or rinse components

• Internal plumbing connections

• Pump seals or connections

• Excessive foaming

• Incorrect chemical use

• Door or hood sealing problems

• Damaged components

• Installation or drainage issues

The important point is that:

A Leak Is a Symptom — Not a Diagnosis.

Replacing the first wet component you can see doesn't necessarily solve the underlying problem.

The source needs to be identified.

Where Is Your Glasswasher Leaking From?

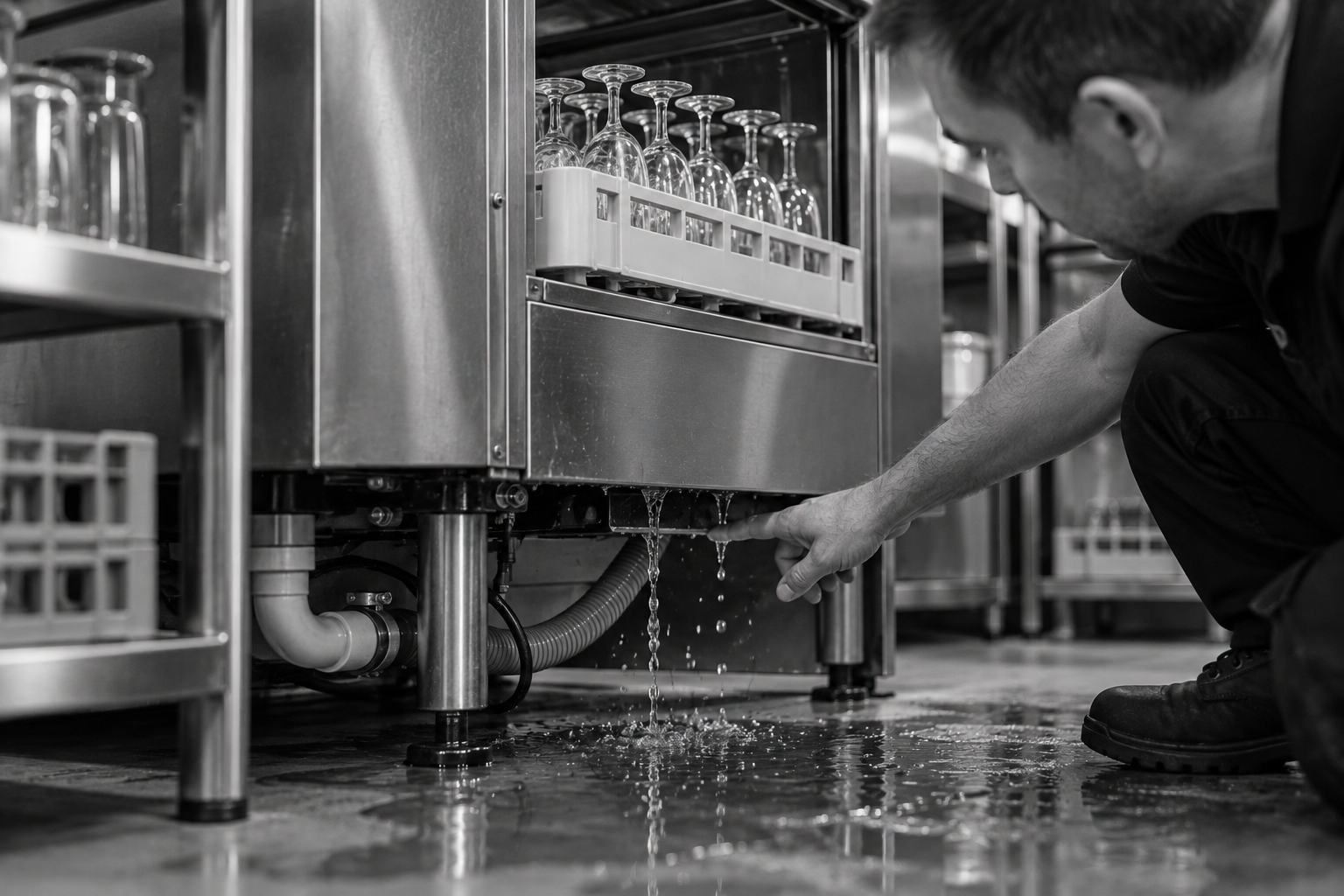

Underneath the Glasswasher

Finding water underneath a commercial glasswasher doesn't immediately tell you which component is responsible.

Water can travel along hoses, pipes, frames and other surfaces before eventually dripping onto the floor.

The point where you see the water may therefore be different from the point where the leak started.

Potential sources may include:

• Internal hoses

• Hose connections

• Pumps

• Pump seals

• Valves

• Drainage components

• Water inlet components

• Internal plumbing

• Tank or associated fittings

Inspection while considering when the leak occurs can help narrow down the source.

Glasswasher Leaking From the Door

If water escapes around the door during operation, possible factors can include:

• Door seals

• Damaged or deteriorated sealing surfaces

• Door alignment

• Excessive water level

• Excessive foaming

• Spray being directed incorrectly

• Blocked or incorrectly fitted wash components

• Loading or obstruction problems

A leaking door doesn't automatically mean the door seal needs replacing.

If the water level is too high, for example, the door may simply be where the underlying problem becomes visible.

Diagnose Why Water Is Reaching the Door Before Replacing Parts.

Glasswasher Leaking During the Wash Cycle

Does the machine remain dry while sitting idle but start leaking once the wash cycle begins?

Tell us.

When the leak occurs matters.

A leak that appears only while the wash pump is operating can point the investigation in a different direction from a machine that leaks continuously.

Areas that may need inspection include:

• Wash pump

• Pump seals

• Pressurised hoses

• Connections

• Wash arms

• Internal pipework

• Door or hood area

• Water level

• Excessive foaming

This is why knowing when the water appears can help with diagnosis.

Glasswasher Leaking While Filling

If the leak appears while the machine is filling with water, the incoming water system and water-level control may need investigation.

Depending on the machine, possible causes can include:

• Water inlet hose

• Hose connections

• Inlet valve

• Internal water connections

• Water-level sensing

• Overflow condition

• Excessive filling

• Related control problems

If the machine continues taking in water beyond its intended level, the visible leak may actually be the result of an overfilling problem.

Glasswasher Leaking While Draining

Does the water appear towards the end of the cycle or while the machine is emptying?

The drainage system may need to be investigated.

Potential areas can include:

• Drain hose

• Drain connections

• Drain pump

• Associated seals

• Waste connection

• Restrictions or blockages

• Internal drainage components

A drainage problem can also cause water to back up or appear in unexpected places.

Having trouble getting the machine to drain?

Troubleshoot Commercial Glasswasher Not Draining →

Commercial Glasswasher Overflowing With Water

A Leak and an Overflow Aren't Necessarily the Same Problem

If water is rising too high inside the machine and then escaping, the problem may not be a failed seal at all.

The glasswasher may be overfilling.

Depending on the machine, possible areas requiring investigation can include:

• Water-level sensing

• Pressure systems

• Inlet valve

• Water-level controls

• Drainage

• Blockages

• Related electrical or control components

The correct response isn't simply to stop the water escaping.

It's to determine:

Why Is There Too Much Water in the Machine?

Could a Blocked Drain Cause a Glasswasher to Leak?

Potentially.

If water isn't leaving the machine as intended, the water level may become abnormal or water may back up through parts of the drainage system.

Possible drainage issues can include:

• Blocked filters

• Drain restrictions

• Blocked or kinked hoses

• Drain pump problems

• Waste connection problems

• Internal blockages

However, water underneath a glasswasher doesn't automatically mean the drain is blocked.

The source still needs to be confirmed.

Commercial Glasswasher Hose Leaks

Commercial glasswashers use hoses and connections to move water through different parts of the machine.

Over time, depending on the equipment and operating environment, hoses and connections may deteriorate, loosen or become damaged.

Possible signs include:

• Dripping underneath the machine

• Water appearing only during a cycle

• Water around a particular connection

• Intermittent leaking

• Increasing water loss

A hose that looks wet isn't always the source.

Water may have travelled onto it from somewhere above.

That's why tracing the water back to its origin matters.

Commercial Glasswasher Pump Leaks

Commercial glasswashers can contain pumps associated with washing and, depending on the design, drainage or rinsing functions.

Leaks around a pump may involve:

• Seals

• Connections

• Hoses

• Pump housing

• Associated fittings

• Other nearby components

Before replacing a pump, the exact source of the leak should be identified.

Wet Doesn't Automatically Mean Failed.

Can Too Much Detergent Make a Glasswasher Leak?

In some situations, excessive foaming can contribute to water or foam escaping from a commercial warewashing machine.

Commercial glasswashers are designed to operate with appropriate commercial chemicals and correct dosing.

Using an unsuitable product or incorrect chemical concentration may create excessive foam and poor washing results.

If the machine began leaking or foaming after:

• Changing detergent

• Changing chemical supplier

• Adjusting detergent dosing

• Using a different cleaning product

• Accidentally introducing hand dishwashing liquid

tell the technician.

That information can be an important clue.

Having chemical problems too?

Troubleshoot Commercial Glasswasher Chemical Dosing Problems →

Why Is Foam Coming Out of My Commercial Glasswasher?

More Foam Doesn't Mean More Cleaning.

Commercial glasswashers aren't designed to operate like a domestic sink full of suds.

Excessive foaming can interfere with normal operation and may contribute to foam or water escaping from the machine.

Possible factors can include:

• Unsuitable detergent

• Excessive detergent

• Incorrect chemical dosing

• Chemical contamination

• Residue on incoming glassware

• Other operating conditions

If excessive foam suddenly appears, don't simply keep adding more chemical.

Determine what's causing it.

Could a Glasswasher Door Seal Be Causing the Leak?

Yes, a damaged or deteriorated seal can be one possible source of leakage.

But don't automatically assume:

Water near door = failed door seal.

Water escaping around a door may also involve:

• Excessive water level

• Foaming

• Spray direction

• Door alignment

• Loading

• Wash-arm problems

• Other operating conditions

The seal should be inspected as part of the diagnosis rather than replaced solely because water is visible nearby.

Why Does My Glasswasher Only Leak Sometimes?

Intermittent leaks can be frustrating.

The machine may complete several cycles without a problem and then suddenly leave water on the floor.

This can happen because conditions change during different stages of operation.

Useful questions include:

• Does it leak while filling?

• During washing?

• During rinsing?

• While draining?

• Only when completely full?

• Only with certain racks?

• Only after several consecutive cycles?

• Does the amount of water change?

These details can help narrow down which part of the machine requires investigation.

Is the Glasswasher Actually Leaking?

Not Every Puddle Comes From a Failed Machine Component.

Before assuming the glasswasher itself has failed, consider where else the water could be coming from.

Depending on the installation, water around a glasswasher may potentially originate from:

• Nearby sink

• Water supply connection

• External inlet hose

• Drain or waste connection

• Chemical container

• Condensation

• Spillage during operation

• Surrounding equipment

This is particularly important in busy bars and commercial kitchens where several water sources can be located close together.

Find the Source Before Replacing the Part.

What Staff Can Check Before Calling a Technician

There are several basic observations your team can make without dismantling the equipment.

Look at Where the Water First Appears

Front?

Back?

Underneath?

Near the door?

Near the drain?

Notice When It Happens

During filling?

During the wash cycle?

During rinsing?

During draining?

Constantly?

Check for Excessive Foam

Unexpected foam may provide an important clue.

Check for an Obvious External Problem

Look for clearly visible external hose or drain issues without removing panels or accessing electrical components.

Check Whether the Machine Is Overfilling

Does the water level appear unusually high?

Tell Us What Changed

Did the leak begin after:

• Moving the glasswasher?

• Changing chemicals?

• Servicing?

• A blockage?

• Another repair?

• A sudden unusual noise?

Small details can make diagnosis easier.

What Not to Do With a Leaking Commercial Glasswasher

A commercial glasswasher combines water, heat, chemicals, mechanical components and electricity.

If significant water is escaping from the machine, continuing to operate it can create additional hazards or damage.

Don't:

• Ignore a recurring leak

• Continually mop up water and keep operating without investigating it

• Remove electrical panels unless appropriately qualified

• Reach into live electrical areas

• Randomly adjust internal components

• Assume the first wet component is the source

• Use unsuitable chemicals to test the machine

If water is creating an electrical or slip hazard, stop using the equipment and follow your workplace safety procedures.

Why a Small Glasswasher Leak Shouldn't Be Ignored

A few drops may not seem urgent during a busy service.

But persistent water leakage can potentially contribute to:

• Slip hazards

• Damage to surrounding areas

• Corrosion

• Damage to components

• Electrical hazards

• Increasing water loss

• Equipment deterioration

• A larger eventual failure

The underlying problem may also worsen over time.

The Earlier You Identify the Source, the Better.

How We Diagnose a Leaking Commercial Glasswasher

1. Tell Us What the Machine Is Doing

Tell us:

• Brand

• Model, if known

• Where the water appears

• When it leaks

• Whether it's constant or intermittent

• Whether the machine is overflowing

• Whether you've noticed excessive foam

• When the problem started

You don't need to diagnose the machine yourself.

2. We Investigate the Source

Depending on the symptoms and equipment, diagnosis may involve inspection of relevant:

• Hoses

• Connections

• Pumps

• Seals

• Valves

• Water inlet components

• Drainage system

• Water-level system

• Wash system

• Internal plumbing

• Door or hood

• Chemical conditions

• Controls

3. We Identify Why It's Leaking

Finding water isn't enough.

We want to know where it originates and why.

4. We Explain What We've Found

Once the source is identified, we'll explain what requires attention.

5. We Repair What's Required

Where repair is appropriate, we address the relevant fault rather than replacing unrelated components based on assumptions.

We Find the Fault Before We Sell the Fix.

Why Correct Diagnosis Matters

Imagine water is escaping from around the glasswasher door.

It looks like a failed door seal.

Replacing the seal seems like the obvious repair.

But what if the machine is actually overfilling?

Or excessive foam is forcing water through the door area?

Or the spray pattern is abnormal?

The new seal hasn't solved the underlying fault.

That's why our approach is:

Find Where the Water Starts — Not Just Where It Ends Up.

Commercial Glasswasher Brands We Repair

Worldwide CDM diagnoses and repairs faults across many commercial glasswasher brands used throughout Sydney hospitality venues, including:

• Lamber

• Eswood

• Washtech

• Sammic

• Norris

• Adler

• Aristarco

• Baron

• Jemi

• Smartwash

Contact us with your glasswasher brand, model and a description of where the water is appearing.

Commercial Glasswasher Leak Repairs Across Sydney

Worldwide CDM provides commercial glasswasher fault diagnosis and repairs for:

• Restaurants

• Bars

• Pubs

• Clubs

• Hotels

• Cafés

• Function centres

• Catering businesses

• Commercial kitchens

• Hospitality venues

We service commercial customers throughout Sydney and surrounding service areas.

More Than 30 Years of Commercial Equipment Experience

When your glasswasher starts leaking during a busy service, your team doesn't need another problem to work around.

They need the source identified.

Worldwide CDM is a family-run commercial catering equipment business with more than 30 years of experience supporting Sydney hospitality businesses.

Our approach is straightforward:

Understand the symptom.

Find the source.

Diagnose the cause.

Explain the problem.

Repair what's required.

We Find the Fault Before We Sell the Fix.

Related Commercial Glasswasher Problems

A water leak can sometimes occur alongside another glasswasher problem.

Explore our troubleshooting guides:

Commercial Glasswasher Not Draining →

For machines leaving water inside the tank or experiencing drainage problems.

Commercial Glasswasher Not Filling →

For glasswashers that won't fill, fill slowly or have abnormal water-level problems.

Commercial Glasswasher Chemical Dosing Problems →

For excessive foam, detergent, rinse aid or chemical-delivery problems.

Commercial Glasswasher Not Rinsing Properly →

For poor rinse performance, residue, streaks and rinse-system problems.

Commercial Glasswasher Not Cleaning Properly →

For glasses coming out dirty or requiring repeated wash cycles.
